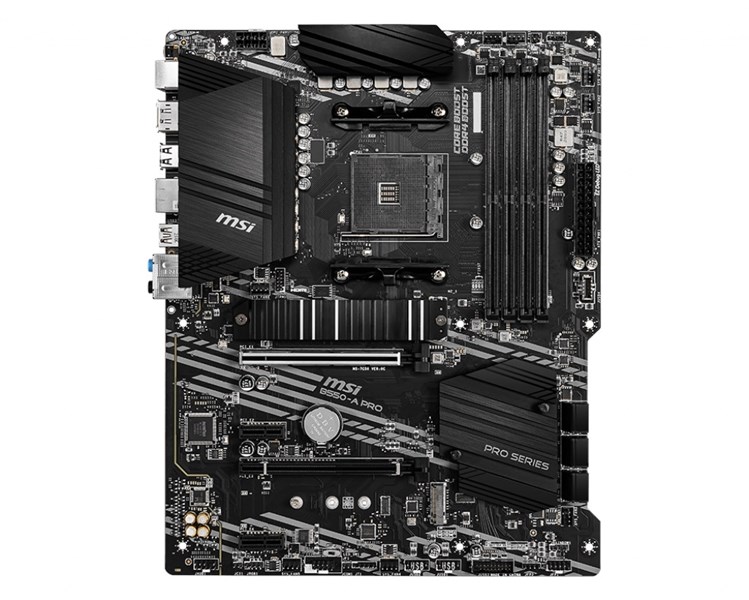

MSI B550-A PRO, ATX-emolevy

Tekniset tiedot:

Prosessorituki:
Tukee 3. sukupolven AMD Ryzen -prosessoreja ja tulevia AMD Ryzen -prosessoreja BIOS-päivityksellä
AM4 -kanta

Piirisarja:
AMD B550

Muistituki:
4 x DDR4 DIMM, maks. 128GB
Dual Channel -muistiarkkitehtuuri
Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE
 - 1DPC 1R Max speed 4800 MHz
 - 1DPC 2R max speed 3866 MHz
 - 2DPC 1R max speed 4000 MHz
 - 2DPC 2R max speed 3600 MHz

Audio:
Realtek® ALC892 Codec

Verkkokortti:
1x Realtek® 8111H Gigabit LAN controller

Laajennuspaikat:
1x PCIe 4.0/ 3.0 x16 slot (PCI_E1)*
1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed**
2x PCIe 3.0 x1 slots

* The supported specification depends on installed processor.
**  When installing PCIe SSD in M.2_2, PCI_E3 slot will be unavailable.

Supports 2-Way AMD CrossFire™ Technology

Liitännät (sisäiset):
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
6x SATA 6Gb/s ports

2x M.2 slots (Key M)
M2_1 slot (from AMD Processor)
 - Supports PCIe 4.0/ 3.0 x4*
 - Supports SATA 6Gb/s
 - Supports 2242/ 2260/ 2280/ 22110 storage devices
M2_2 slot (from AMD B550 chipset)
 - Supports PCIe 3.0x4
 - Supports 2242/ 2260/ 2280 storage devices
* The supported specification depends on installed processor.

1x USB 3.2 Gen 1 5Gbps Type-C port
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
6x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x 4-pin RGB LED connector
2x 3-pin RAINBOW LED connectors
1xTPM module connector
1x Clear CMOS jumper

Liitännät (ulkoiset):
Keyboard / Mouse
DisplayPort
LAN
HD Audio Connectors
Flash BIOS Button
HDMI
4 x USB 2.0
2 x USB 3.2 Gen 1 5Gbps Type-A
USB 3.2 Gen 2 10Gbps Type-A+C

Tuetut käyttöjärjestelmät:
Windows® 10 64-bit

Emolevyn tyyppi:
ATX (30,5 x 24,4 cm)
