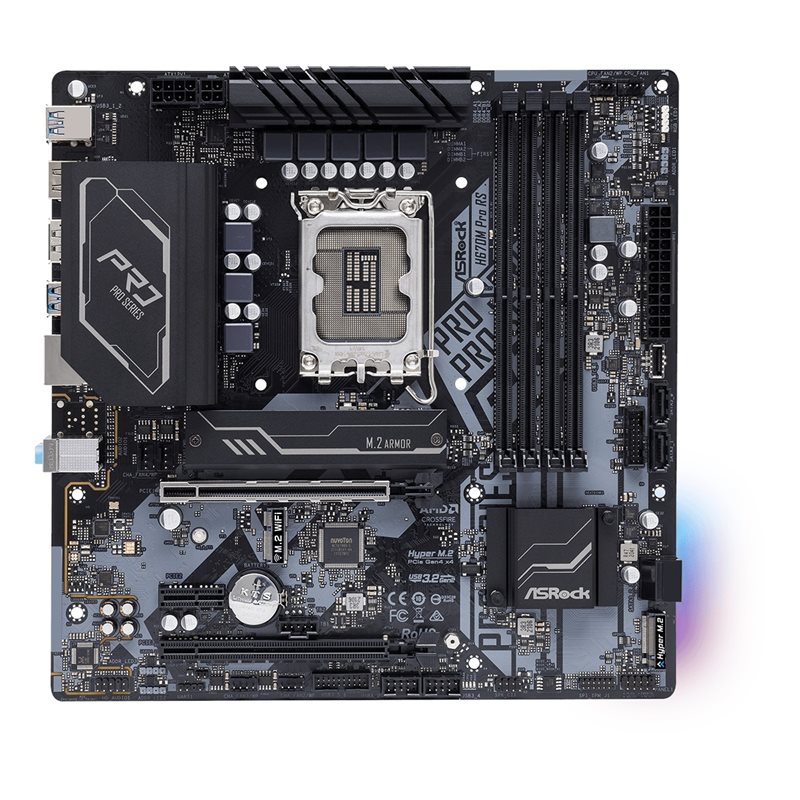

ASRock H670M Pro RS, mATX-emolevy

Tekniset tiedot:

Prosessorituki:
Tukee 12. sukupolven Intel Core -prosessoreja
LGA1700

Piirisarja:
Intel H670

Muistituki:
4 x DDR4 DIMM, maks. 128GB
Dual Channel -muistiarkkitehtuuri
Tukee: DDR4 non-ECC, un-buffered memory up to 4800+(OC)

Audio:
7.1 CH HD Audio (Realtek ALC897 Audio Codec)

Verkkokortti:
Gigabit LAN 10/100/1000 Mb/s
Giga PHY Intel® I219V

Laajennuspaikat:
2 x PCIe x16 Slots (PCIE1/PCIE3: single at Gen4x16 (PCIE1); dual at Gen4x16 (PCIE1) / Gen3x4 (PCIE3))
1 x PCIe Gen3x1 Slot
Supports AMD CrossFire™
1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

Liitännät (ulkoiset):
3 x Antenna Mounting Points
1 x HDMI Port
1 x DisplayPort 1.4
2 x USB 3.2 Gen2 Ports (10 Gb/s) (ReDriver) (Supports ESD Protection)
4 x USB 3.2 Gen1 Ports (ASMedia ASM1074 hub) (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / Microphone

Liitännät (sisäiset):
4 x SATA3 6.0 Gb/s Connectors
1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2280 PCIe Gen4x4 (64 Gb/s) mode
1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes
1 x SPI TPM Header
1 x Chassis Intrusion and Speaker Header
1 x RGB LED Header
3 x Addressable LED Headers
1 x CPU Fan Connector (4-pin)
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
1 x Front Panel Audio Connector
1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)
1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection)

Tuetut käyttöjärjestelmät:
Microsoft® Windows® 10 64-bit / 11 64-bit

Emolevyn tyyppi:
Micro ATX (24,4 x 24,4 cm)
