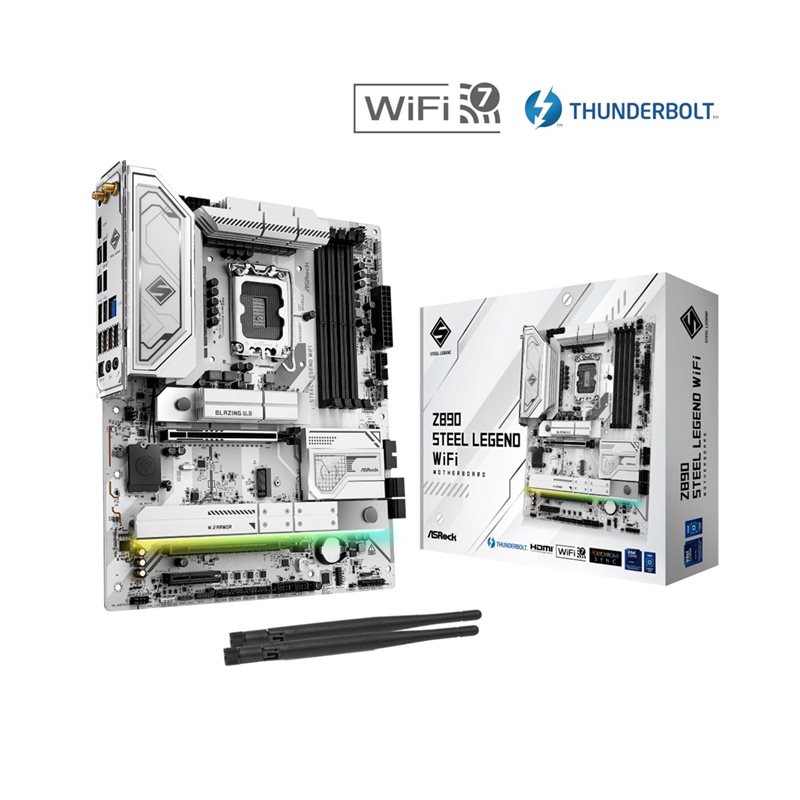

ASRock Z890 Steel Legend WiFi, ATX-emolevy

Steel Legend edustaa vankan kestävyyden ja vastustamattoman estetiikan filosofista tilaa. Vaativimpien teknisten ominaisuuksien ympärille rakennettu Steel Legend -sarja on tarkoitettu päivittäisille käyttäjille ja valtavirran harrastajille! Tarjoaa laajan valikoiman materiaaleja/komponentteja vakaan ja luotettavan suorituskyvyn varmistamiseksi.

Tekniset tiedot:

Prosessorituki:
LGA1851 -kanta
Tukee: Intel® Core™ Ultra Processors (Series 2)

Piirisarja:
Intel Z890

Muisti:
4 x DDR5 DIMM, maks. 256 GB
Dual channel -muistiarkkitehtuuri
Tukee: DDR5 non-ECC, un-buffered memory up to 9066+(OC)
1DPC 1R Up to 9066+ MHz (OC), 5600 MHz Natively.
1DPC 2R Up to 6800+ MHz (OC), 5600 MHz Natively.
2DPC 1R Up to 6800+ MHz (OC), 4800 MHz Natively.
2DPC 2R Up to 5800+ MHz (OC), 4400 MHz Natively.

Audio:
7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)

Verkkokortti:
2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Dragon RTL8125BG

WLAN & Bluetooth:
802.11be 2x2 Wi-Fi 7 Module
Supports IEEE 802.11a/b/g/n/ac/ax/axe/be
Supports 2.4GHz/5GHz/6GHz frequency band
Supports 320MHz channel bandwidth with 6GHz frequency band
1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology
Supports Bluetooth 5.4
Supports MU-MIMO

Laajennuspaikat:
CPU:
1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode

Chipset:
1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode
1 x PCIe 4.0 x4 Slot (PCIE3), supports x4 mode
1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)

Liitännät (sisäiset):
CPU:
1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode
1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode

Chipset:
1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes
1 x Hyper M.2 Socket (M2_4, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode
4 x SATA3 6.0 Gb/s Connectors

1 x Thermistor Cable Header
1 x SPI TPM Header
1 x Power LED and Speaker Header
1 x RGB LED Header
3 x Addressable LED Headers
2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)
5 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)
1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
1 x Front Panel Audio Connector (15μ Gold Audio Connector)
2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)

Liitännät (takana):
2 x Antenna Ports
1 x HDMI Port
1 x Optical SPDIF Out Port
2 x ThunderboltTM 4 Type-C Ports (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt protocol)
2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)
4 x USB 3.2 Gen1 Ports
2 x USB 2.0 Ports
1 x RJ-45 LAN Port
1 x BIOS Flashback Button
1 x Line Out Jack (Gold Audio Jack)
1 x Microphone Input Jack (Gold Audio Jack)

Tuetut käyttöjärjestelmät:
Microsoft® Windows® 11 64-bit

Emolevyn tyyppi:
ATX (30,5 x 24,4 cm)
